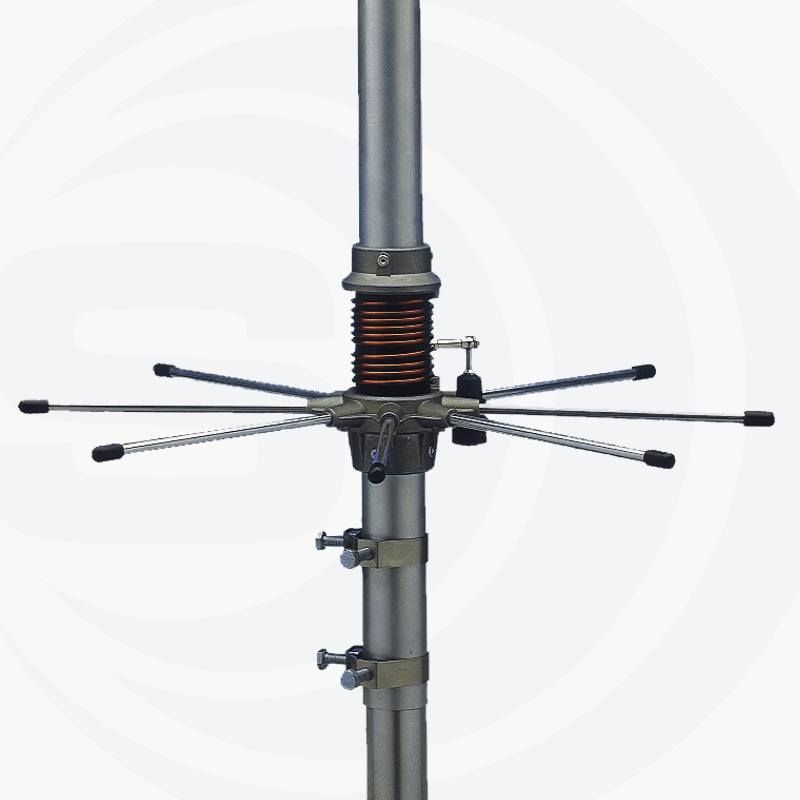

ANTENA BAZOWA SIRIO 827
Electrical Data
-
Type: 5/8λ ground plane
-

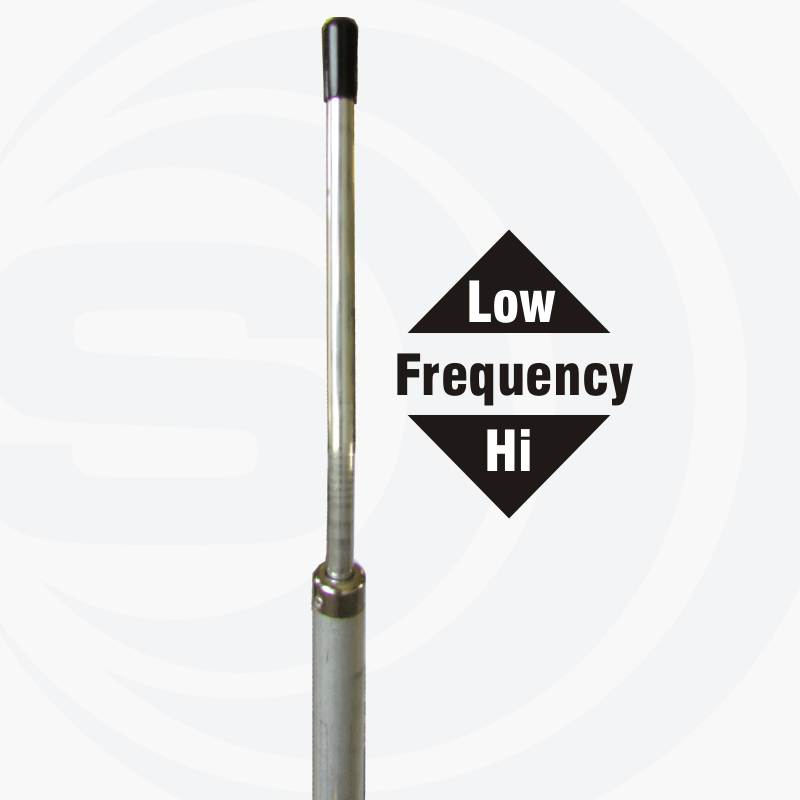

Frequency range: tunable from 26.4 to 28.4 MHz
-
Impedance: 50Ω
-
Radiation (H-plane): 360° omnidirectional
-
Polarization: linear vertical
-
Gain: 1.5 dBd, 3.65 dBi
-
Bandwidth @ SWR ≤ 2: ≥ 2000 KHz
-
SWR @ res. freq.: ≤ 1.1
-
Max. power:
1000 Watts (CW) continuous
3000 Watts (CW) short time
-
Feed system / position: Transformer DC-ground / base
-
Connector: UHF-female
Mechanical Data
-
Materials: Aluminium, Steel, Copper, Nylon
-
Wind load / resistance: 264 N at 150 Km/h / 130 Km/h
-
Wind surface: 0.23 m²
-
Height (approx.): 6700 mm
-
Weight (approx.): 6000 gr
-
Radial length (approx.): 1400 mm
-
Mounting mast: Ø 35-39 mm
