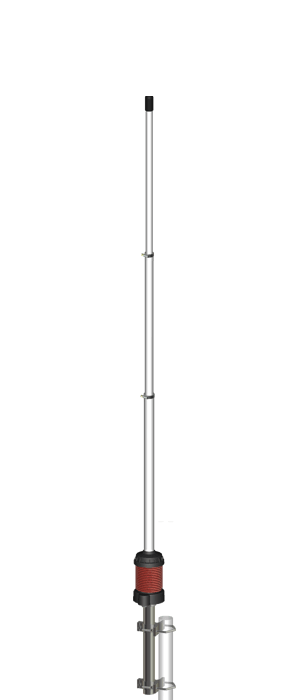

ANTENA SIRIO GAIN MASTER

Gain Master.png

ilość szt.

Zyskujesz 3 pkt [?]

towar niedostępny

dodaj do przechowalni

Ocena:

0

Producent:

Kod produktu: AA1E-49111

zapytaj o produkt
poleć znajomemu
dodaj opinię

Opis

Gain Master Antena Bazowa

TYP 5/8

CZESTOTLIWOSC 25,5-30 Mhz ( 400 KANALOW)

MAX. MOC 500W

1000W CHWILOWEJ

Technical Data

ELECTRICAL DATA
Type	0.625 λ center feeded vertical dipole
Frequency Range @ SWR ≤ 2.0	25.5 - 30 MHz 400 CB channel & 10m ham band
Impedance	50 Ω
Radiation	Omnidirectional
Polarization	Linear Vertical
Max Gain on the horizon	1 to 2 dB higher than conventional 5/8 λ
Max Power	500 Watts (CW) continuous, 1000 Watts (CW) short time
Ligthning protection	All metal parts are DC-grounded, the inner conductor shows a DC-short
Connector	UHF-female, PTFE insulator & gold plated central pin

MECHANICAL DATA
Materials	Whip made of white fiberglass four sections composite tube, radiator made of copper wire and low loss coax cable, stainless steel hardware, anodized AW6060 aluminium, UV stabilized thermoplastic.
Wind Resistance	up to 160 Km/h using bracing rods (see Annex installation manual)
Height (approx.)	7360mm with bracket, radiator 6850mm
Packaging Dimensions	1950 x 100 x 130 mm
Weight (approx.)	3 Kg
Mounting mast	Ø 35-54 mm side mast with “V” bolt
